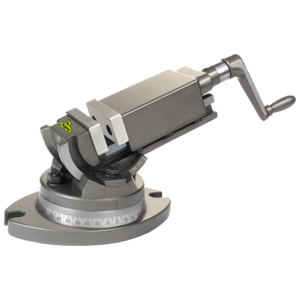

ANGULAR MACHINE VICE
ANGULAR MACHINE VICE
- BODY IS MADE OF GREY SG IRON
- SWIVEL RANGE 360 DEGREE AROUND BASE
- VERTICAL TILTING MOVEMENT 90 DEGREE
- HARDENED AND GROUNDED JAW WITH GROOVE PROVIDED WITH "V" SHAPE
- MOVING JAW RUNS IN LONG PRISMATIC SLIDE WITH PROVISION FOR WEAR ADJUSTMENT
- PROVIDED REMOVEABLE HARDENED STEEL JAW
- IDEAL USE FOR DRILLING AND MILLING OPERATION
- FITTED WITH THRUST BEARING FOR SMOOTH MOVEMENT
AJ-203/SGI
| SIZE | Max jaw opening | WEIGHT | Master Carton | |
|---|---|---|---|---|
|
mm |
MM |
kg |
|
|
|
50 MM
|
50 |
3.5
|
4
|
|
|
75 MM |
75 |
8 |
2
|
|
|
100 MM
|
100
|
18
|
2
|
|
|
125 MM
|
125
|
32
|
1
|
|
|
150 MM
|
150
|
40
|
1
|
|
|
200 MM
|
200
|
60
|
1
|
|
